L Series

L1850, L225, L235, L245, L2500, L2501, L2600, L2800, L2850, L2900, L3000, L3010, L3130, L3200, L3240, L3300, L3301, L3400, L3410, L3560, L3901, L3940, L4060, L4240, L4330, L4400, L4600, L4701

MX Series

MX4700, MX4800

M Series

M4030, M59, M62 (Backhoe/TLB)

B Series

B300 (Industrial)

Kubota

D1102, D1301, D1302, D1402, D1403, D1503, D1703, D1803, V1502, V1702, V1902, V1903, V2003, V2203, V2403 (Standard, M, and DI variants)

5-Cylinder Engines

 F2302, F2803

Spark-Ignited (Gas/LPG)

WG2503

L Series

 L1850, L225, L235, L245, L2500, L2501, L2800, L3000, L3130, L3200, L3240, L3301, L3400, L3410, L3560, L3800, L3901, L4060, L4240, L4330, L4400, L4701

MX Series

MX4700, MX4800, MX5100, MX5200, MX5800

M Series

M4030, M5140, M5640, M5660, M59, M62 (TLB)

Garden/Utility

R420, R430, R520, F2100, F2400

Skid Steers

643, 645, 743, 751, 753, 763, 773, S130, S150, S160, S175, S185, S205, S510, S530

Track Loaders

T110, T140, T180, T190

Excavators

225, 231, 325, 328, 329, 331, 334, 337, 341, 430, 435, E32, E35, E42, E50

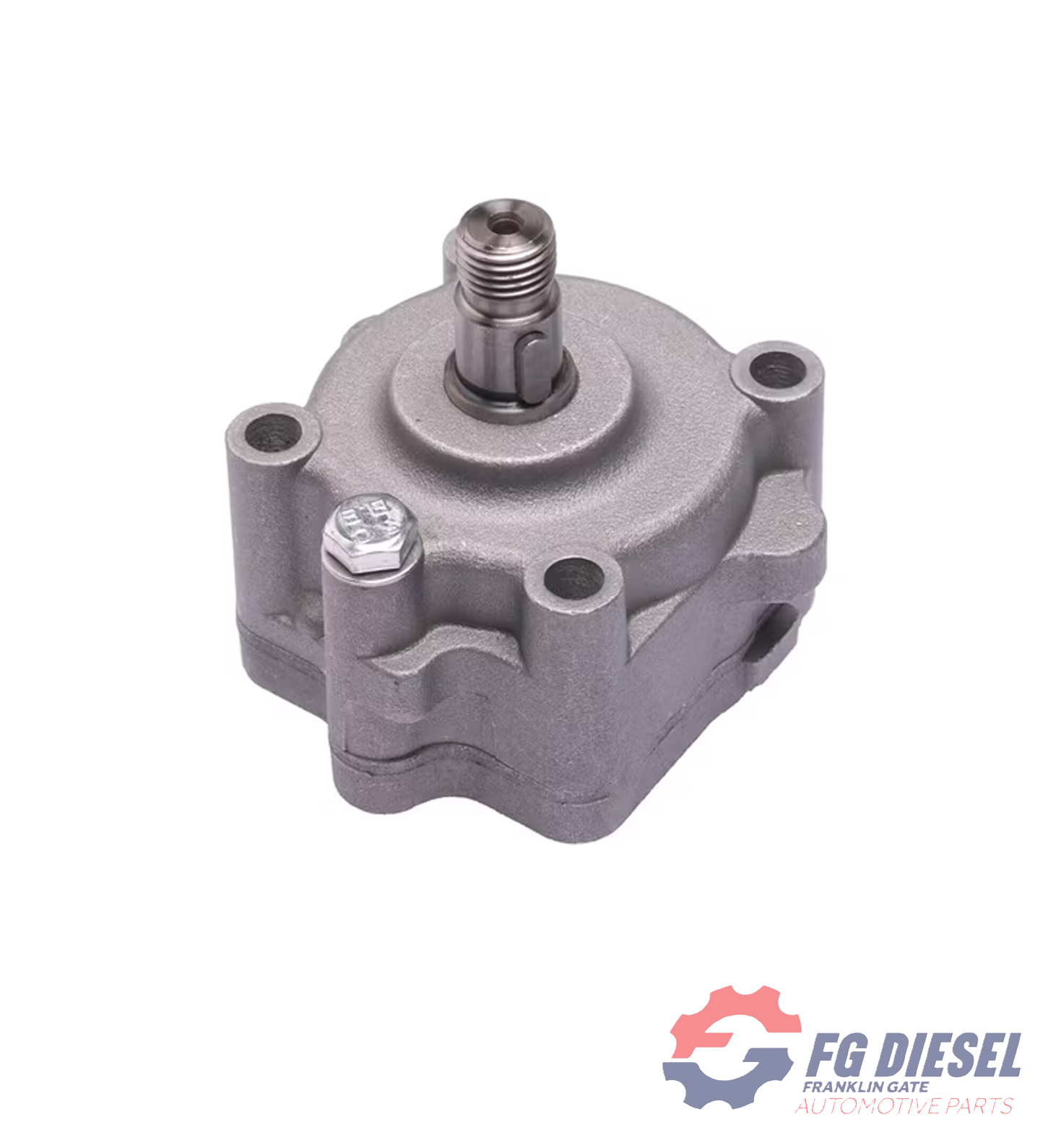

• Drive Type: Gear Driven (Timing Gear Train)
• Tooth Count: 16 Teeth(Standard)
• Material: High-strength Cast Iron housing with sintered steel gears
• Weight: ~1.1 kg (2.4 lbs)
• Mounting: External to the block, typically behind the front gear case/timing cover

Cross References

Kubota Supersessions: 15471-35010, 15471-35012, and sometimes 1E013-35013 (modern M-Series version).

Bobcat Part Number: 6689441 or 3975426.

Carrier Transicold: 25-37040-00 (Found in reefer units with V2203 engines).
