Massey Ferguson

5400 Series: 5445, 5455, 5460, 5465.

6400 Series: 6445, 6455, 6465, 6470.

Also fits: Various models in the 300, 4200, and 4300 series using the 1004.4 engine.

McCormick

CX Series: CX105.

MC Series: MC105, MC115.

Landini

Vision Series: 105.

Legend Series: 115, 120, 130 (Tier 2/3 variants).

Caterpillar (Ag)

Compatible with Challenger equipment and agricultural loaders using the CAT 3054C or 3056C engines (which are Perkins-derived).

Perkins 1104 Series: 1104A-44, 1104C-44, 1104C-44T, and 1104D-44T.

Perkins 1103 Series: 1103C-33 and 1103D-33T.

Caterpillar: C4.4 industrial and marine engines.

FG Wilson : Used on P44, P45, P50, and P65 generator sets.

Manitou : MT and MLT series telescopic handlers.

JCB : Various 3CX/4CX Backhoe loaders (specifically those with side-mounted radiators).

Hyster / Yale : High-capacity diesel forklifts (5.0–9.0 ton range).

Genie : Larger S-series and Z-series boom lifts powered by Perkins.

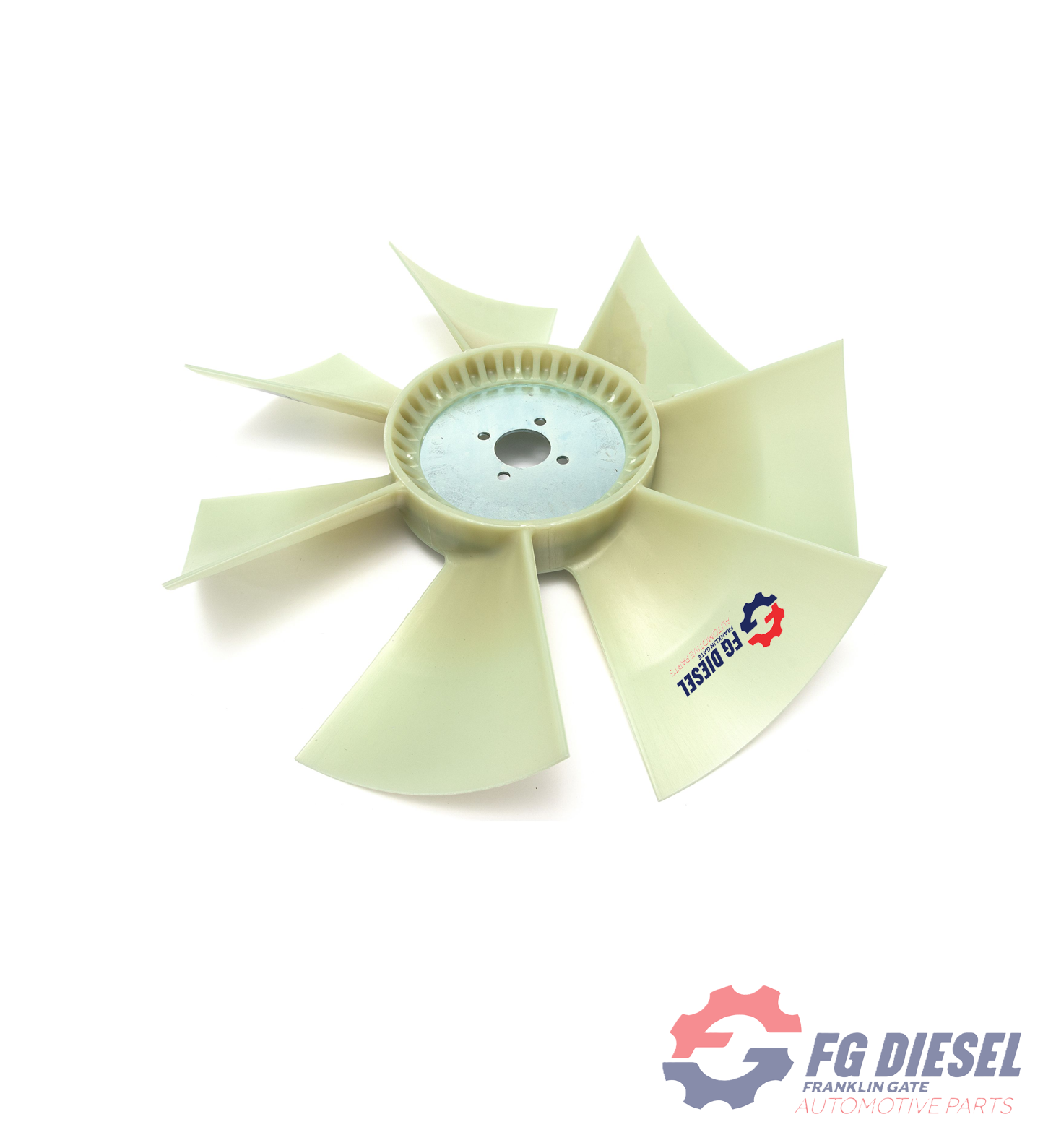

• Type : Pusher Fan
• Outer Diameter : 457 mm (approx. 18 inches)
• Number of Blades : 7 Blades
• Mounting Center : 6-Bolt Pattern
• Blade Material : High-Strength Glass-Reinforced Polymer or Steel (build dependent)
• Rotation : Clockwise (as viewed from the front)

Perkins: 2485C514

Caterpillar (CAT): 216-3990, 2163990

FG Wilson: 10000-05527, 915-131

Massey Ferguson: 4224953M1

JCB: 02/202470
