Massey Ferguson

Extensive use in the 5400, 6400, and 7400 series. Common models include the 5455, 5460, 6465, 6470, 6480, and 7480.

McCormick

Often found in the CX, MC, and MTX series (e.g., MC115, MTX120) that run on Perkins 1104C or 1106C power plants.

Landini

Compatible with the Landpower, Legend, and Vision series tractors.

JCB

While mostly industrial, it fits Fastrac 2000 and 3000 series tractors and many 3CX/4CX backhoes using the Perkins Tier 2/3 engines.

Perkins 1000 Series: 1004-4, 1004-4T, 1004-40T, 1004-42, 1004G, 1006-60T, and 135Ti.

Perkins 1100 Series: 1104C-44, 1104C-44T, 1104C-E44T, 1104D-E44T, and 1104D-E44TA.

Perkins 1106 Series: 1106C-E60TA and 1106D-E66TA.

Massey Ferguson : Tractors: 3680, 6270, 6280, 6290, 8140, 8150, 8160, 8250, 8260, 8270, 8280.

Caterpillar : Engines: 3054, 3054B/C/E, 3056, and C4.4 / C6.6 industrial builds.

JCB : Various backhoes and telehandlers using the Perkins 4.4L or 6.0L engines.

Landini / McCormick : Various agricultural tractors using the Perkins 1104C/D series.

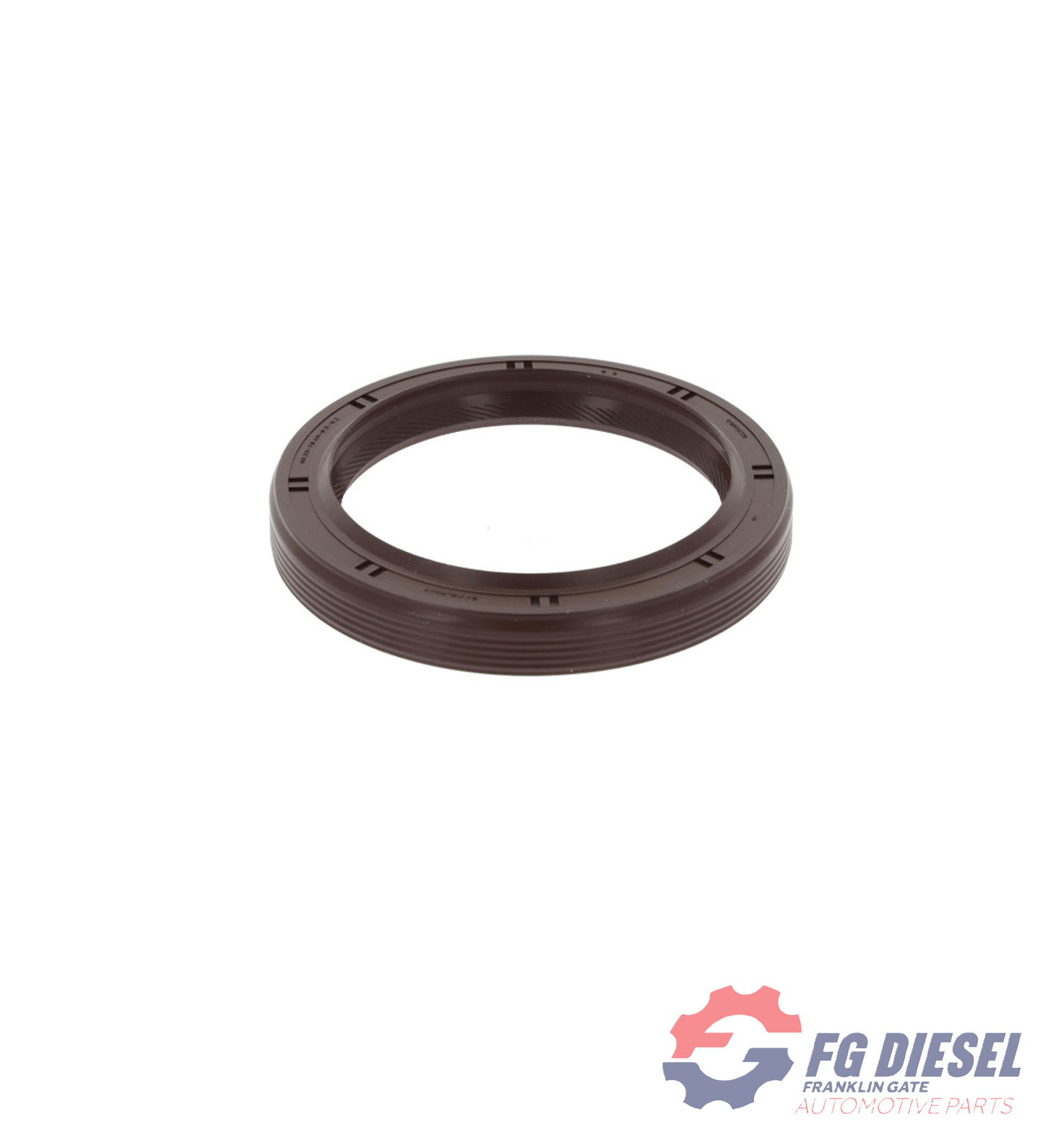

• Type : Cassette Seal / Radial Lip Seal
• Material : Viton (FKM) or High-Grade Nitrile (high heat/chemical resistance)
• Inner Diameter : ~60 mm
• Outer Diameter : ~80 mm
• Width/Thickness : ~12 mm
• Direction of Rotation : Right-Hand (Clockwise)

Perkins: 2418F436, 2418F475

Caterpillar (CAT): 225-8329 (Commonly found in C4.4 and C6.6 engines)

FG Wilson: 10000-05383, 915-779

JCB: 02/201405, 02/202481

Massey Ferguson: 4224765M1

Manitou: 746324
