Massey Ferguson

400 Series: 445, 461, 491, 492.

3400 Series: 3425, 3435, 3445, 3455.

5400 Series: 5410, 5420, 5425, 5430, 5435, 5440, 5445, 5450, 5460.

6400 Series: 6445, 6455, 6460, 6470.

McCormick

MC Series: MC115 (specifically build list RK37989).

Also found in various CX and MTX models using Tier 2/3 engines.

Landini

Landpower, Vision, and Rex series models equipped with Perkins 1104C-44TA or 1104D-44TA engines.

Claas

Certain Ares and Arion models utilizing the Perkins 1104 turbocharged-aftercooled platforms.

Perkins 1100 Series: 1106C-E60TA, 1106D-E66TA, and high-spec 1104D-44TA models.

Perkins 1200 Series: 1206E-E66TA and 1206F-E66TA (Tier 4 Interim/Final).

Caterpillar: Engines C6.6 and C7.1 ACERT.

Caterpillar : Excavators (320D, 323D), M316D/M318D Wheel Excavators, and 924H/930H Wheel Loaders.

Massey Ferguson : High-horsepower tractors such as the 6485, 6490, 7485, and 7490.

JCB : Larger Loadall telehandlers and heavy-duty backhoes using the 6-cylinder Perkins variants.

FG Wilson : Larger diesel generator sets, typically in the 150kVA to 250kVA range.

Claas : Various combines and foragers powered by Perkins/Cat 6.6L engines.

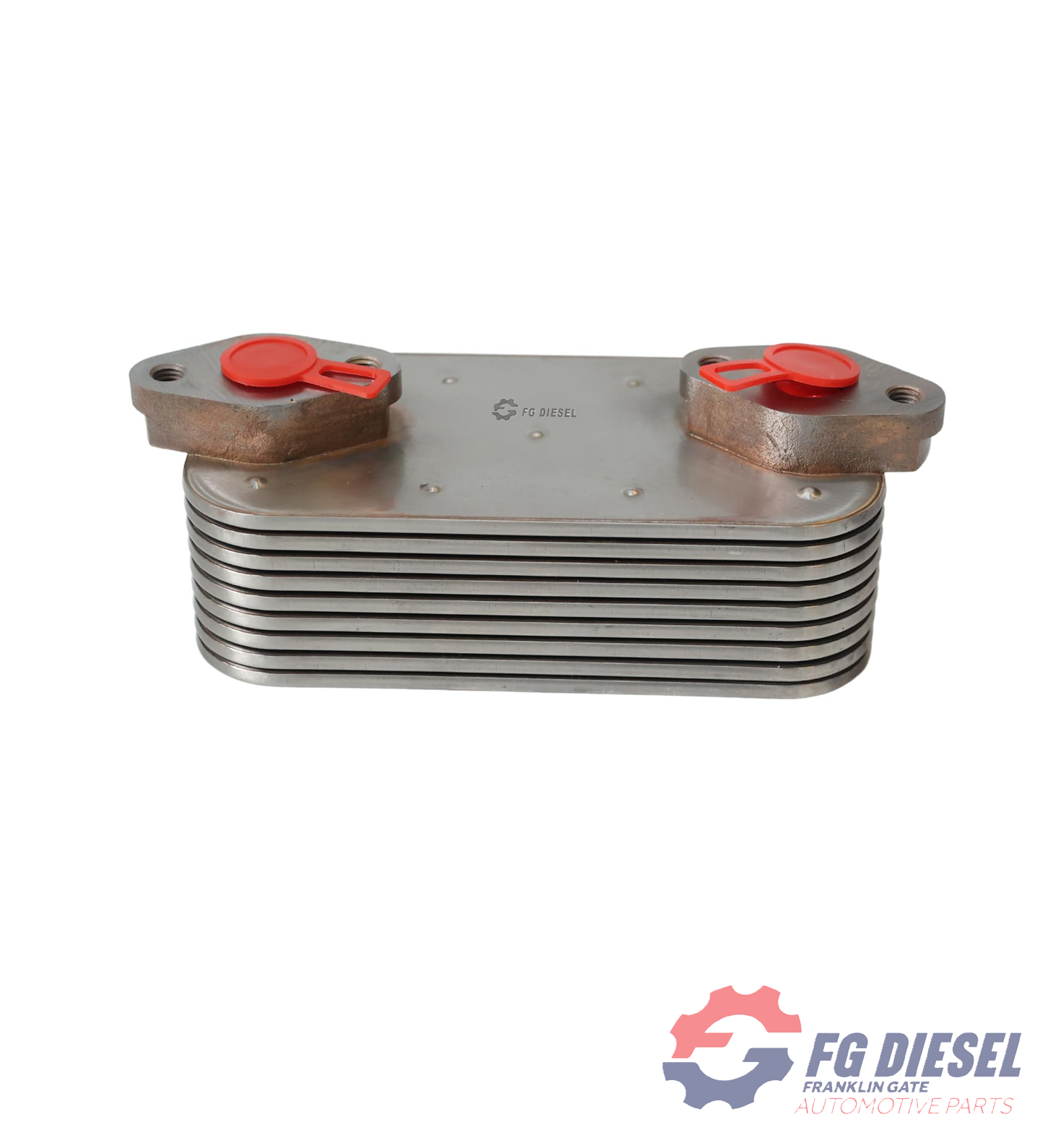

• Type : Plate-and-Fin (Oil-to-Water)
• Material : High-Grade Aluminum
• Number of Plates : 9 to 11 Plates (High-capacity stack)
• Length : ~175 mm to 190 mm (Core length varies by build)
• Compatibility : Perkins 1106 Series (6.6L Engines)

perkins: 2486A217

caterpillar (CAT): 244-6062, 2446062

FG Wilson: 10000-09555

JCB: 02/202489

Massey Ferguson: 4225324M1

Manitou: 746409
